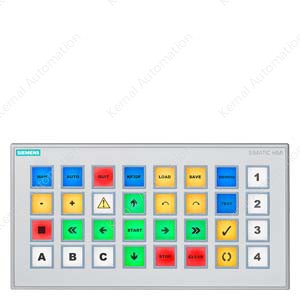

SIMATIC HMI KP32F PN, KEY PANEL, 32 SHORT-STROKE KEYS WITH MULTI-COLOR LED''S, PROFINET INTERFACES WITH PROFISAFE, 16DI+16DI/DO, 4 SAFETY DI PINS, 24V DC LOOP THROUGH CONFIGURABLE FROM STEP7 V5.5

Product type designation

Control elements

With parameterizable keys

Yes

With key and signal lamp test

Yes; Automatically when switching on

Keyboard

● freely inscribable membrane keys

Yes

● Short stroke keys

— Number of short-stroke keys

32

Expansions for operator control of the process

● DP direct LEDs (LEDs as S7 output I/O)

32

● Number of color modes for LED

5; Red, green, blue, yellow, white

● Direct keys (keys as S7 input I/O)

32

Installation type/mounting

Rack mounting possible

No

Front installation possible

Yes

Type of fitting, rail mounting

No

Wall mounting/direct mounting possible

No

Mounting in portrait format possible

Yes

Mounting in landscape format possible

Yes

Mounting technology

Clamp terminals

Number of slots for command devices and signaling units

0

Supply voltage

Type of supply voltage

DC

Rated value (DC)

24 V; 24 V looped through at connector, no interruption on pulling

permissible range, lower limit (DC)

20.4 V

permissible range, upper limit (DC)

28.8 V

Input current

Current consumption (rated value)

1 A

Type of output

LED colors

● Red

Yes

● Yellow

Yes

● Green

Yes

● white

Yes

● blue

Yes

Digital inputs

Number of digital inputs

32; Total inputs and outputs max. 32 and 2x SIL 2 or 4x SIL 3

Input voltage

● Rated value (DC)

24 V

Digital outputs

Number of digital outputs

16; Max. 32 inputs and outputs (total)

Load "resistive"

100 mA

Number of additional outputs

● Output current (per output) max.

100 mA

● Total current (per group), max.

800 mA

● short-circuit protection

Yes

Output voltage

● Rated value (DC)

24 V

Interfaces

PROFINET IO

● Number of PROFINET interfaces

2; Incl. switch

Industrial Ethernet

● Number of industrial Ethernet interfaces

2; For the construction of lines and rings without external switch

● Industrial Ethernet status LED

2; Per port

● Number of ports of the integrated switch

2; Per port

Protocols

PROFINET

Yes; incl. shared device, 3rd party PLC

PROFINET IO

Yes

IRT supported

Yes

MRP supported

Yes

PROFINET CBA

No

Supports protocol for PROFIsafe

Yes; 2x SIL 2 (two-channel) or 4x SIL 3 (single channel) emergency stop sensor

PROFIBUS

No

MPI

No

Protocols (Ethernet)

● TCP/IP

No

Further protocols

● AS-i

No

● Supports protocol for AS-Interface Safety at Work

No

● Supports protocol for SafetyBUS p

No

● CAN

No

● INTERBUS

No

● Supports protocol for INTERBUS-Safety

No

● EIB/KNX

No

● MODBUS

No

● Data highway

No

● DeviceNet

No

● Supports protocol for DeviceNet Safety

No

● Supports protocol for EtherNet/IP

No

● Local Operating Network

No

● SUCOnet

No

● Foundation Fieldbus

No

● SERCOS

No

● other bus systems

No

Test commissioning functions

Illuminant test

Yes; During switch on

Pushbutton and lamp test

Yes; During switch on

EMC

Emission of radio interference acc. to EN 55 011

● Limit class A, for use in industrial areas

Yes; Group 1, measured at a distance of 10 m

● Limit class B, for use in residential areas

No

Degree and class of protection

IP (at the front)

IP65

Enclosure Type 4 at the front

No

Enclosure type 4x at the front

Yes; Incl. NEMA12

IP (rear)

IP20

Standards, approvals, certificates

CE mark

Yes

KC approval

Yes

cULus

Yes

RCM (formerly C-TICK)

Yes

Suitable for safety functions

Yes

Marine approval

● Germanischer Lloyd (GL)

No

● American Bureau of Shipping (ABS)

No

● Bureau Veritas (BV)

No

● Det Norske Veritas (DNV)

No

● Lloyds Register of Shipping (LRS)

No

● Nippon Kaiji Kyokai (Class NK)

No

● Polski Rejestr Statkow (PRS)

No

Use in hazardous areas

● ATEX Zone 2

No; On request

● ATEX Zone 22

No; On request

● cULus Class I Zone 1

No

● cULus Class I Zone 2, Division 2

Yes

● FM Class I Division 2

Yes

Ambient conditions

Mounting position

vertical

maximum permissible angle of inclination without external ventilation

30°; To the front/rear

Operating temperature

● Operating temperature range, min.

0 °C

● Operating temperature range, max.

55 °C

● Operation (vertical installation)

— in vertical mounting position, minimum

0 °C

— in vertical mounting position, maximum

55 °C

● Operation (max. tilt angle)

— at maximum tilt angle, minimum

0 °C

— at maximum tilt angle, maximum

45 °C

● Operation (vertical installation, portrait format)

— in vertical mounting position, minimum

0 °C

— in vertical mounting position, maximum

45 °C

● Operation (max. tilt angle, portrait format)

— at maximum tilt angle, minimum

0 °C

— at maximum tilt angle, maximum

45 °C

Storage/transport temperature

● Min.

-20 °C

● max.

60 °C

Relative humidity

● Operation, max.

95 %

Configuration

Configuration software

● STEP 7 Basic (TIA Portal)

Yes

● STEP 7 Professional (TIA Portal)

Yes

Functionality under WinCC (TIA Portal)

Process coupling

● S7-1200

Yes; with ET 200pro CPU and ET 200S CPU

● S7-1500

Yes

● S7-200

No

● S7-300/400

Yes; with F-CPU: STEP 7 V11 SP1 or higher and Safety V11 (or higher), without F-CPU STEP 7 or SIMATIC STEP 7 Basic V11 (or higher)

● LOGO!

No

● Win AC

Yes

● SINUMERIK

No

● SIMOTION

No

● Allen Bradley (EtherNet/IP)

No

● Allen Bradley (DF1)

No

● Mitsubishi (MC TCP/IP)

No

● Mitsubishi (FX)

No

● OMRON (FINS TCP)

No

● OMRON (LINK/Multilink)

No

● Modicon (Modbus TCP/IP)

No

● Modicon (Modbus)

No

Mechanics/material

Type of housing (front)

● plastic

No

● aluminum

Yes

● Stainless steel

No

Lifetime, typ.

● Short-stroke keys (in switching cycles)

1 500 000

● LEDs (ON period)

100 %

Dimensions

Width of the housing front

295 mm

Height of housing front

155 mm

Mounting cutout/device depth (W x H x T)

● Mounting cutout, width

277 mm; Max. thickness of mounting plate 2-6 mm

● Mounting cutout, height

137 mm

Device depth

69 mm; Incl. angled SIMATIC Ethernet connector

Weights

Without packaging

1 220 g
